Power Cradle

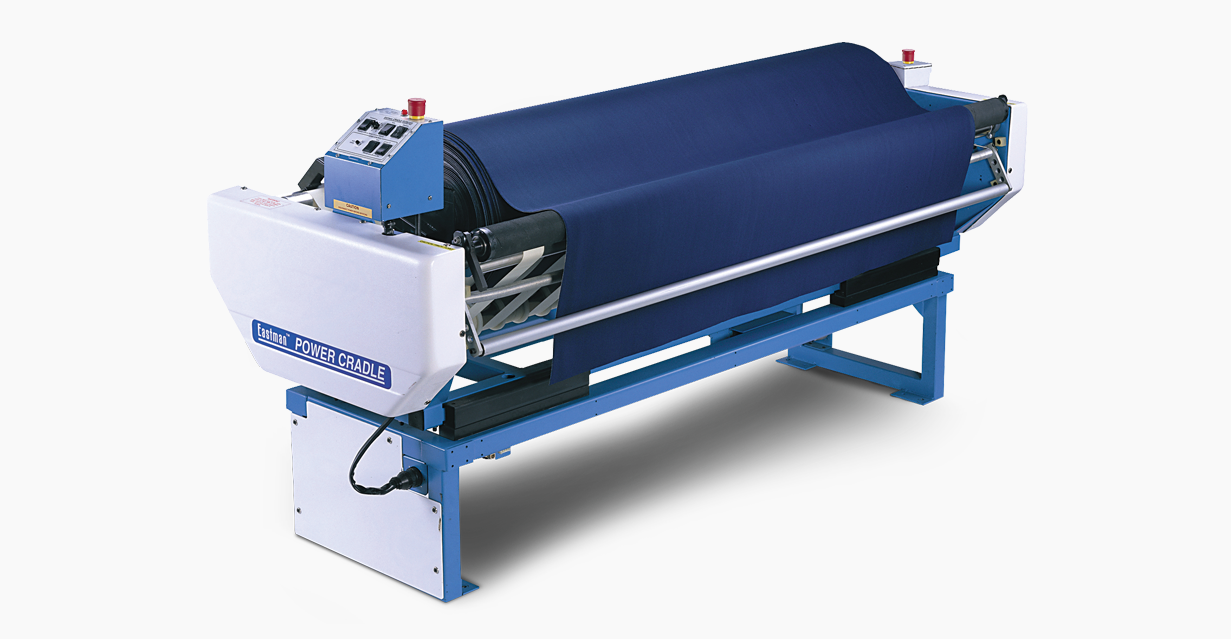

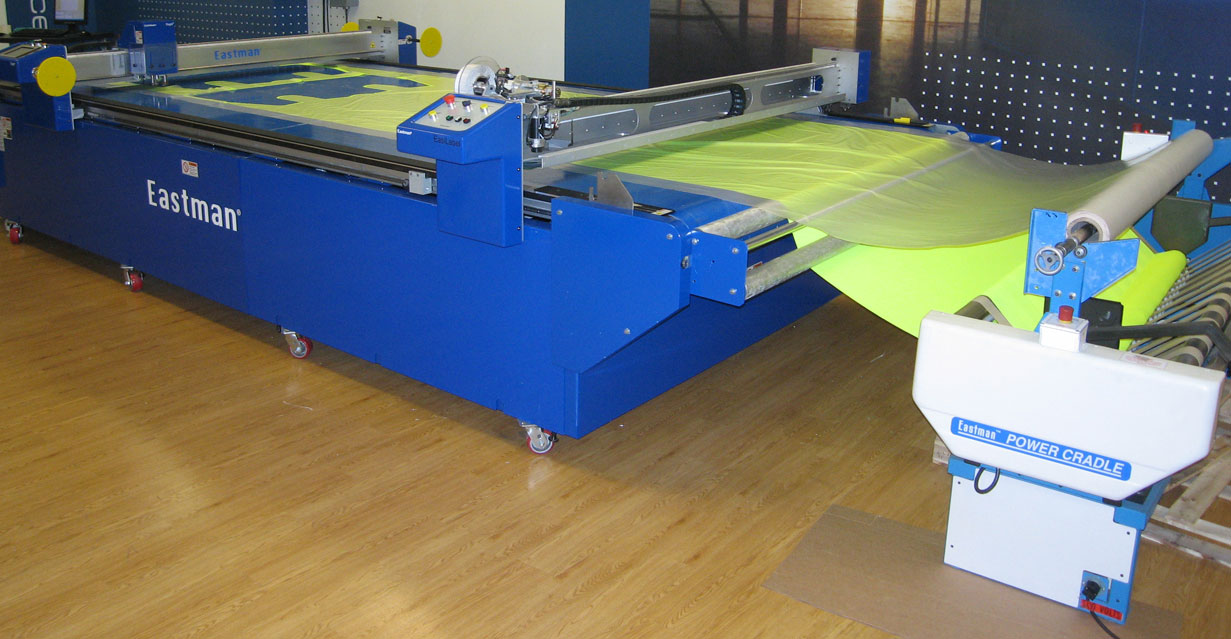

The Power Cradle System provides an efficient way of feeding a variety of material to the cutting system from a cradle, in a relaxed or tensionless state with precise edge control. This system is ideal for tightly wound materials like canvas, kevlar, Cordura® and other industrial textiles.
Product Summary
The Power Cradle System provides an efficient way of feeding a variety of material to the cutting system from a cradle, in a relaxed or tensionless state with precise edge control. This system is ideal for tightly wound materials like canvas, kevlar, Cordura® and other industrial textiles.
Please contact the factory to discuss optional features and configurations available.
Material Handling > Feeding Systems
Features
- Variable speed rate controlled by a dancer bar
- Tilt-back option for loading heavy material rolls
- Dual-cradle configuration available
- Optional upright assembly to enhance feeding flexibility
- Available in mirror image or standard configuration
- Automatic edge control included
- Reverse Roll Attachment
- Uprights / Expandabar
- Uprights / Frozen Bar
- Out of cloth sensor
- Out of Cloth switch for use with Blue Jay system
- Loop Sensor for tension-free spreading
- Extended dancer arm
Download Product PDF
"*" indicates required fields
Additional Information
| Width | 66 in. (1.7m) 72 in. (1.8m) 78 in. (2.0 m) 96 in. (2.4 m) 108 in. (2.7 m) Custom widths available in 6 inch width increments (15.2cm) please contact the factory for more information. |
|---|---|
| Standard Weight Capacity | 300 lbs. (136 kg) |
| Maximum Roll Diameter | 24 in. (61 cm) Custom-built systems available for up to 48 in. (1.2m) diameter rolls. Maximum weight capacity reduced to 250 lbs. (113kg) with 48" diameter rolls. |
| Power Requirements | 110V at 15 amps, 1 ph 220V at 8 amps, 1 ph |
