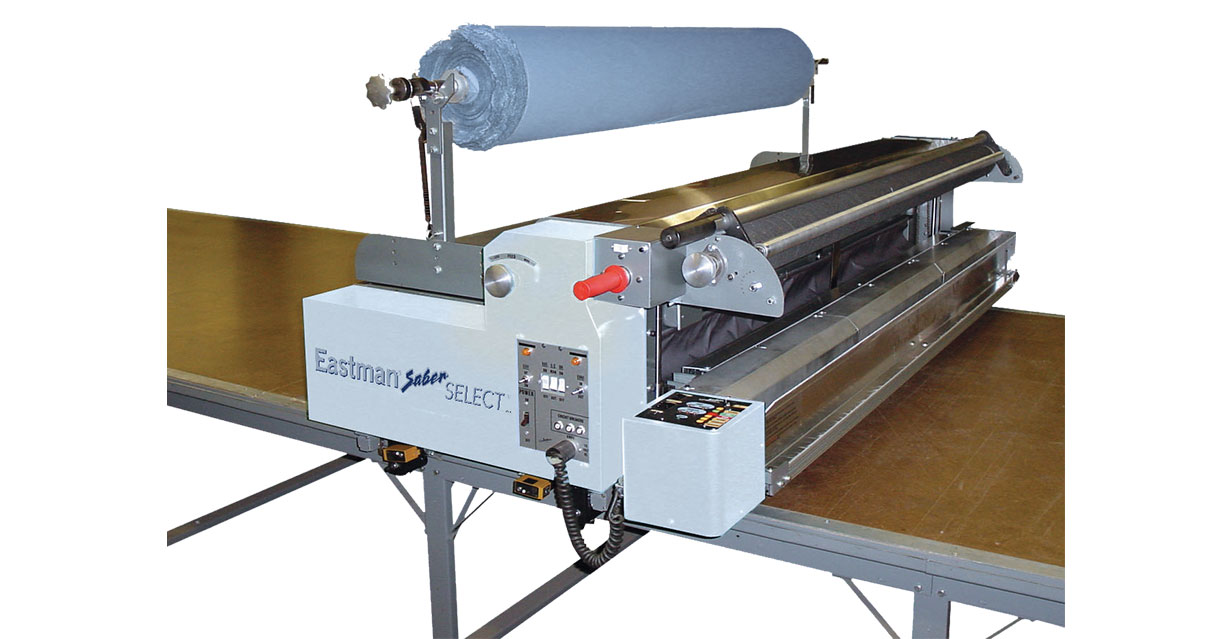

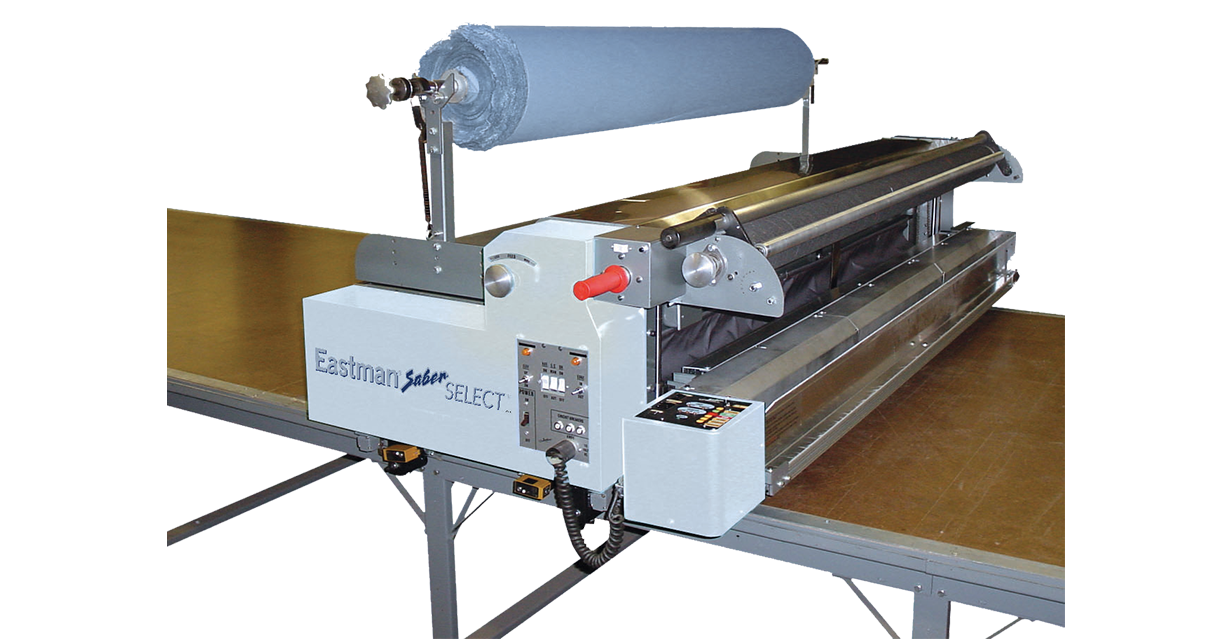

Saber Select™
The Eastman Saber Select positive feed system is designed for spreading rolls of material with weights up to 500 or 800 lb (227/363 kg).
Product Summary
The Eastman Saber Select positive feed system is designed for spreading rolls of material with weights up to 500 or 800 lbs. (227/363 kg).
Available in both semi-automatic and manual modes, the Select system features electric edge control and up to 80 yards/minute of spreading capabilities.
Material Handling > Spreading Systems
Features
Standard Features
- Variable positive feed, with electro-magnetic clutch engagement.
- Solid state drive with dynamic braking
- Heavy duty 3/4HP drive
- Ergonomic speed controller with built in direction switch.
- Guided cut-off knife with motorized elevator lift
- Table guided (no track required)
- Four poly wheels on table (2 wheel drive)
- Electric edge control
- Heavy duty welded steel construction
- Heavy duty cloth bar with cones
- Available in left or right hand configuration
Options
- Motorized knife box
- End catchers with tuck blade assembly
- Track wheels
- Turntable
- Expandabar
- Flat fold attachment
- Custom material width capacities available in 6″ (15.24 cm) increments.
- Floor mounted riding platform
Spreading Modes
- Face-up
- Face-to-face
Additional Information
| Roll Weight - Maximum | 500 lbs. (227 kg) 800 lbs. (363 kg) optional |
|---|---|
| Roll Diameter - Maximum | 28 in. (71 cm) |
| Material Width | 66 – 72 in. (168-183cm) Custom working widths available upon request. |
| Spread Height | 6 in. (15.2 cm) |
| Spreading Speed | 80 yards/min. (73m/min) |
| Power Requirements | 110V 220V |
