Roll Stand, 3-Roll

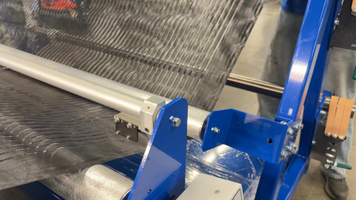

The Roll Stand System allows the user to easily handle rolled goods for spreading onto the cutting system, maintaining precise alignment of each ply with a photo-electric edge control unit. Many configurations and styles available.

Request a Quote
Menu

Product Summary

The Roll Stand System allows the user to easily handle rolled goods for spreading onto the cutting system, maintaining precise alignment of each ply with a photo-electric edge control unit. Many configurations and styles available.

Material Handling > Feeding Systems

Features

  • Infra-red edge control sensors to detect edge of material
  • Optional 4th bar available
  • Three sets of cones recommended
  • Bar options include frozen, solid or expandabar

Download Product PDF

"*" indicates required fields

This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Please complete the below form to download digital assets.

Digital Asset*
Check files to be downloaded:
Enter your email address:
This field is for validation purposes and should be left unchanged.

Additional Information

Width

66 in. (1.7m) 72 in. (1.8m) 78 in. (2.0 m) Custom widths available in 6 inch width increments (15.2cm) please contact the factory for more information.

Standard Weight Capacity

2,000 lbs. (907 kg) 750 lbs. per bar (340kg)

Maximum Roll Diameter

20 in. (51 cm)

Power Requirements

110V or 220V, 1phase

Disclaimer: Achievable speeds and accelerations are tool, material and thickness dependent. All indicated speeds, dimensions, weights and performance data are approximate and subject to change without notice.
